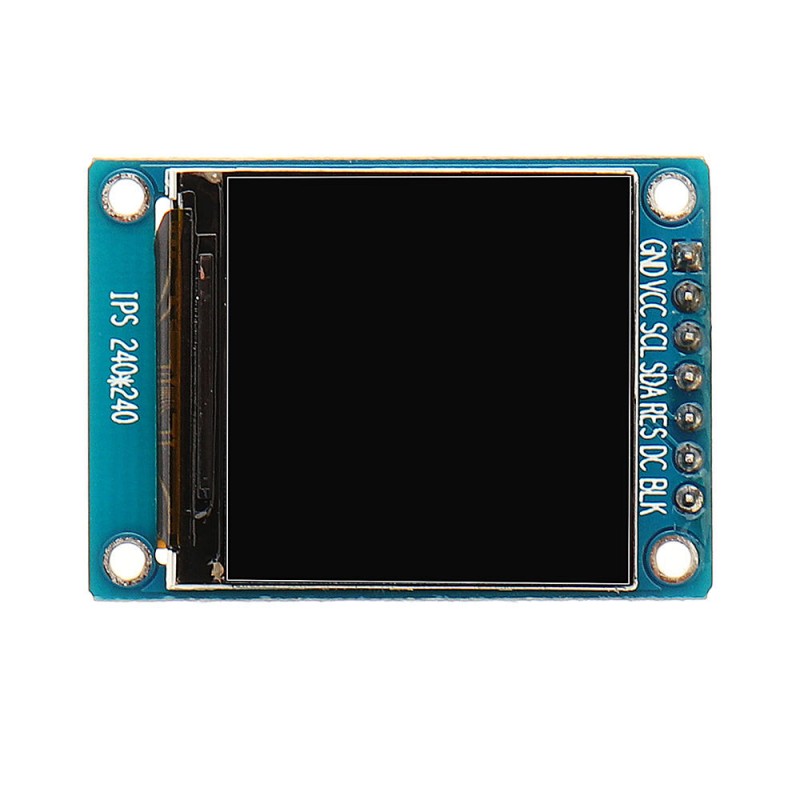

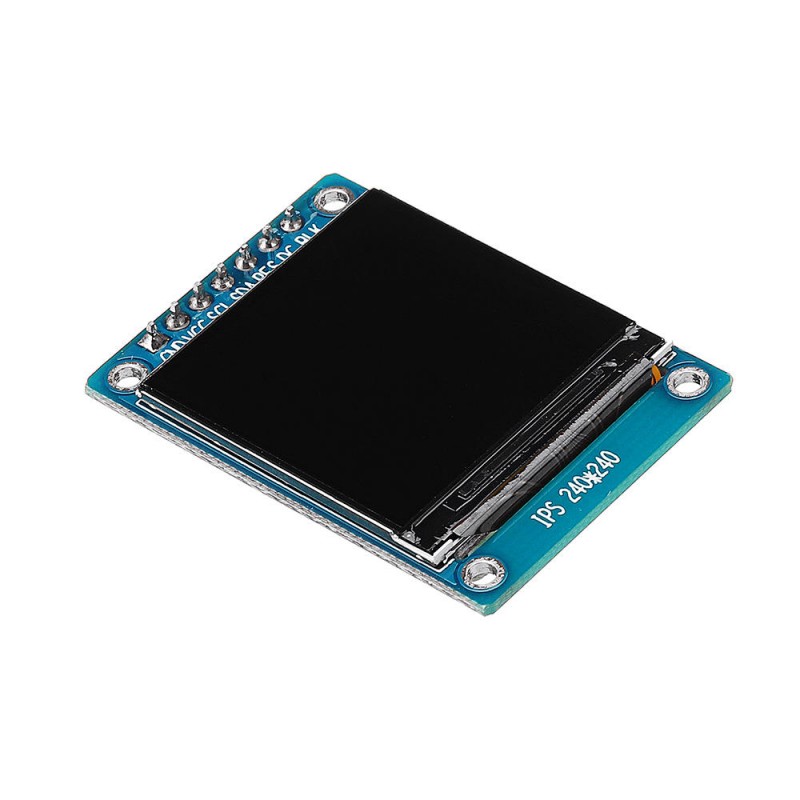

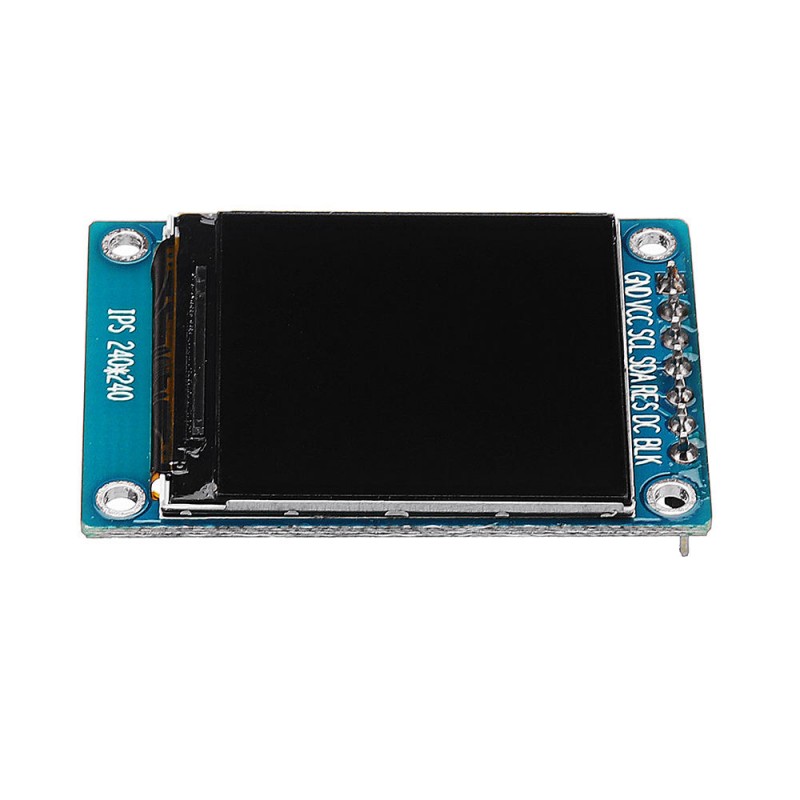

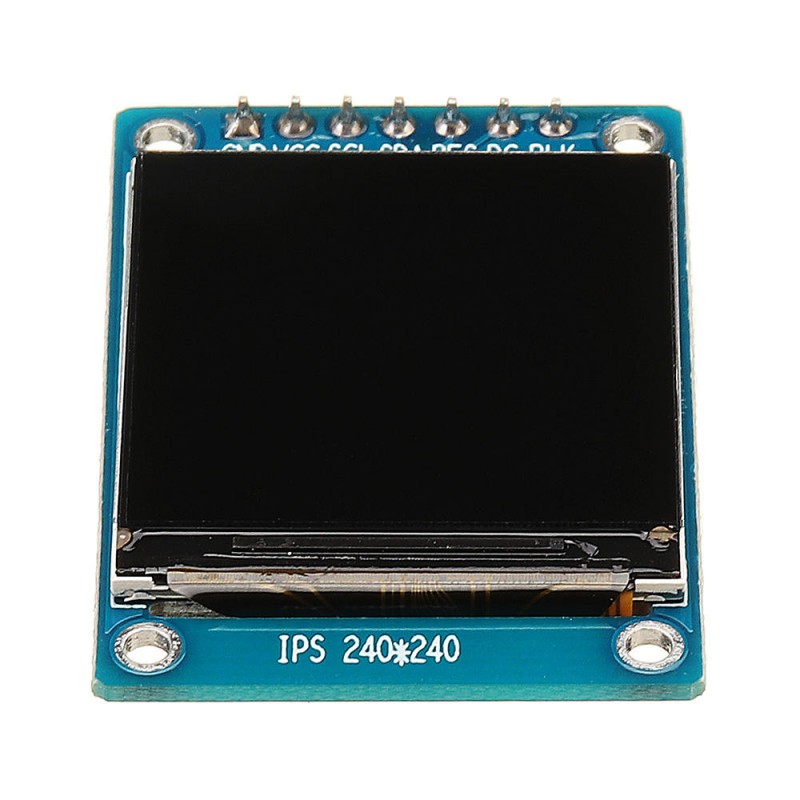

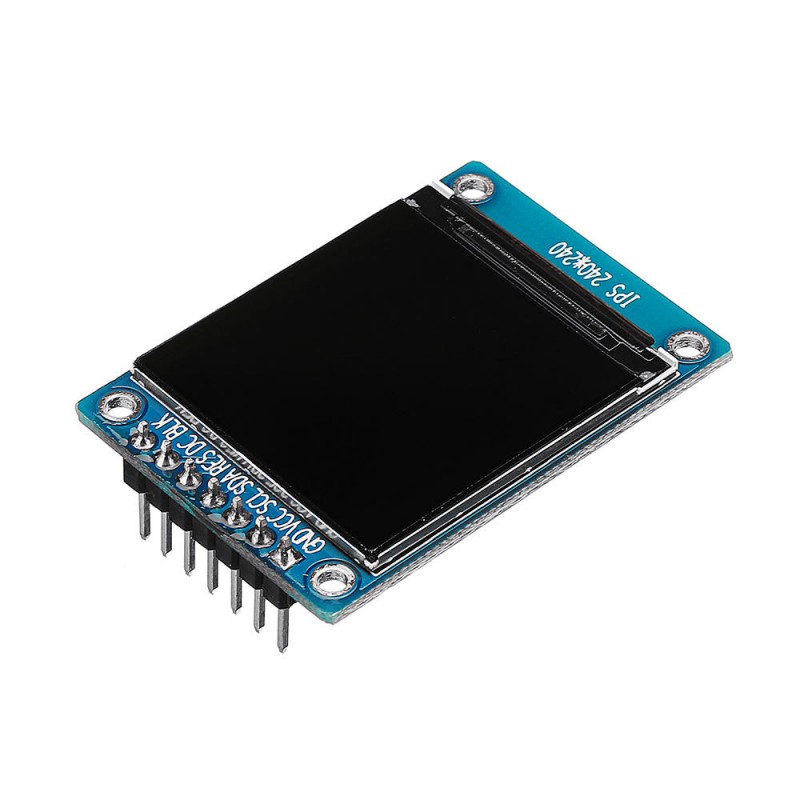

1.3 Inch IPS TFT LCD Display 240*240 Color HD LCD Screen 3.3V ST7789 Driver Module
- $8.42
- Ex Tax:$8.42
- Product Code: A16215
- Availability: In Stock
Feature: Display Size 1.3 inch Material HD IPS color screen, the color is more vivid than ordinary TFT LCD Resolution 240*240 display, the direction can be adjusted, horizontal and vertical Control chip ST7789 Display area 23.4x23.4mm ..
Feature:
| Display Size | 1.3 inch |
| Material | HD IPS color screen, the color is more vivid than ordinary TFT LCD |
| Resolution | 240*240 display, the direction can be adjusted, horizontal and vertical |
| Control chip | ST7789 |
| Display area | 23.4x23.4mm |
| Physical size | 27.78x39.22mm |
| Interface type | 4-wire SPI interface |
| Number of pins | 7PIN |
| Viewing direction | Full view |
| Working temperature | -20°C~70°C |
Interface definition:
| 1 | GND | Power ground |
| 2 | VCC | Power 3.3+ |
| 3 | SCL | SPI clock line |
| 4 | SDA | SPI data line |
| 5 | RES | Reset |
| 6 | DC | Data/command selection foot |
| 7 | BLK | Backlight control, the default can be left floating, low level to turn off the backlight. |
Package includes:1 x TFT display module
