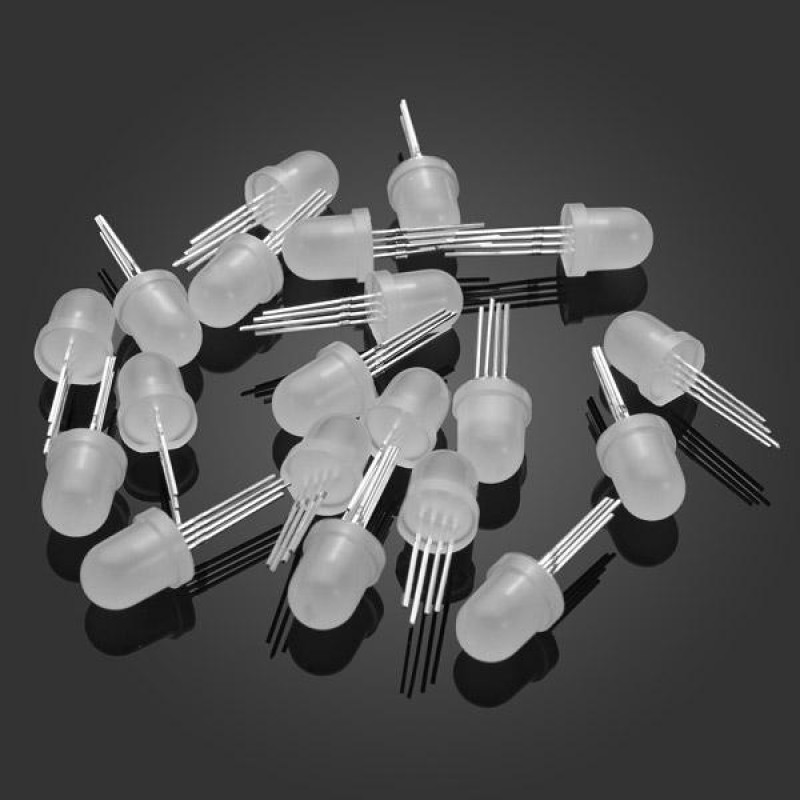

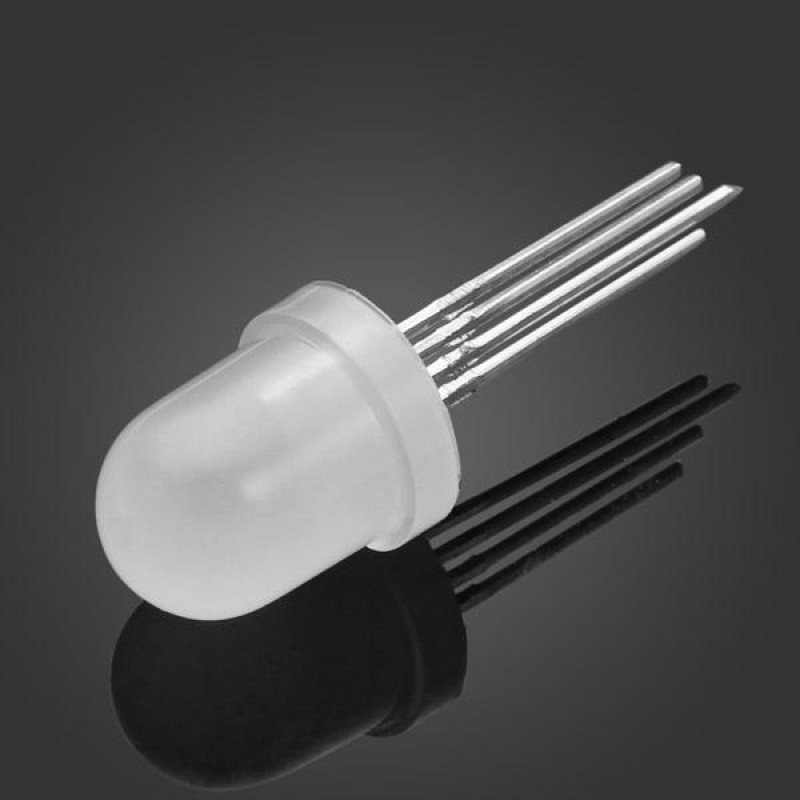

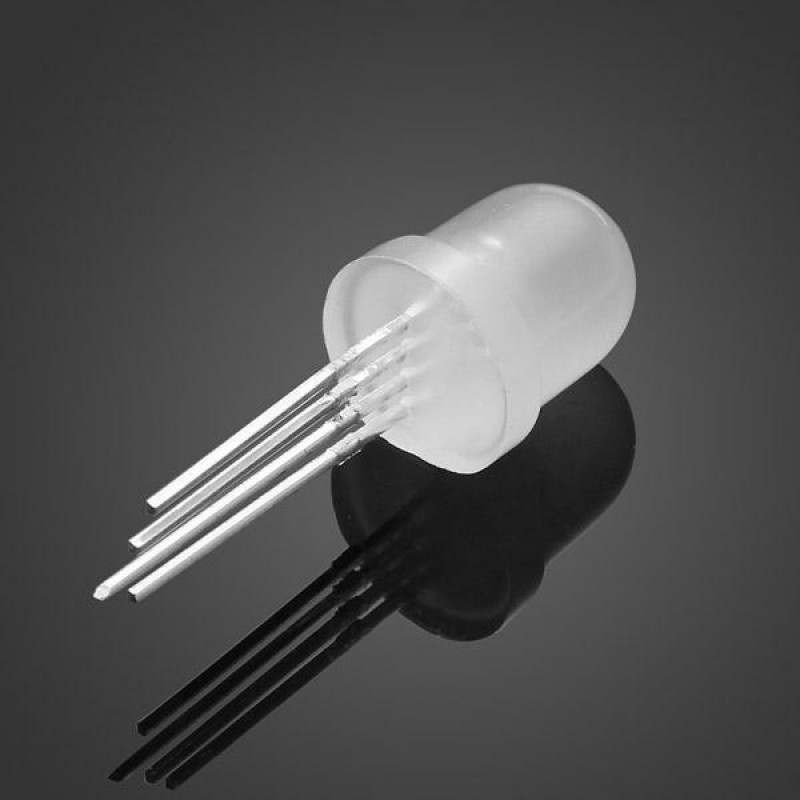

20pcs RGB LED Diode 8mm Red/Green/Blue 4 Pin Light Emitting Diode
- $2.41
- Ex Tax:$2.41
- Product Code: 192006
- Availability: In Stock
Feature:Size: 8mmShape: RoundEmitted Colour : Red / Green / BlueLens Color : DiffusedLuminous Intensity: 200-300/800-100/300-400mcdForward Voltage (V) : 1.9-2.1v 3.0-3.4vView Angle: About 25 degree.Pins sequence: RED / Common Anode (positive terminal, longest pin) / Green / BlueMaximum reverse voltage: VR 5 (v)Forward DC current: 20mADescription:Red2..
Shape: Round
Emitted Colour : Red / Green / Blue
Lens Color : Diffused
Luminous Intensity: 200-300/800-100/300-400mcd
Forward Voltage (V) : 1.9-2.1v 3.0-3.4v
View Angle: About 25 degree.
Pins sequence: RED / Common Anode (positive terminal, longest pin) / Green / Blue
Maximum reverse voltage: VR 5 (v)
Forward DC current: 20mADescription:Red
2.0V-2.2V minimum forward voltage, 20mA
622-625nm dominant wavelengthGreen
3.2V-3.4V minimum forward voltage, 20mA
520-525nm dominant wavelengthBlue
3.0-3.2V minimum forward voltage, 20mA
465-468nm dominant wavelengthCommon Anode (postive input) - LEDs have separate Ground connection (negative input)
Use separate resistors for each color to limit current to max 20mAPackage included:20 x LED diodes
