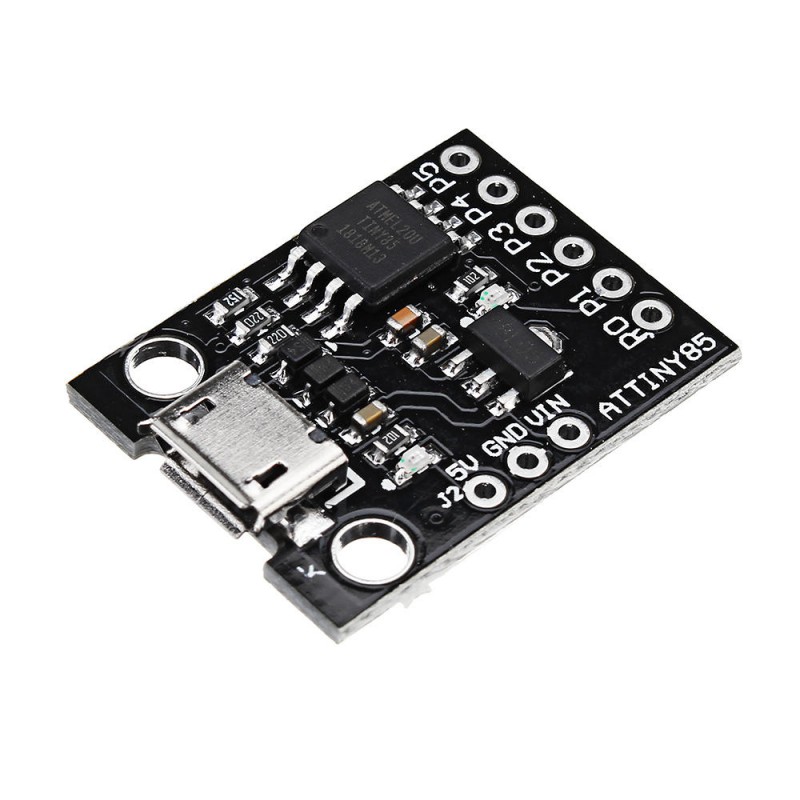

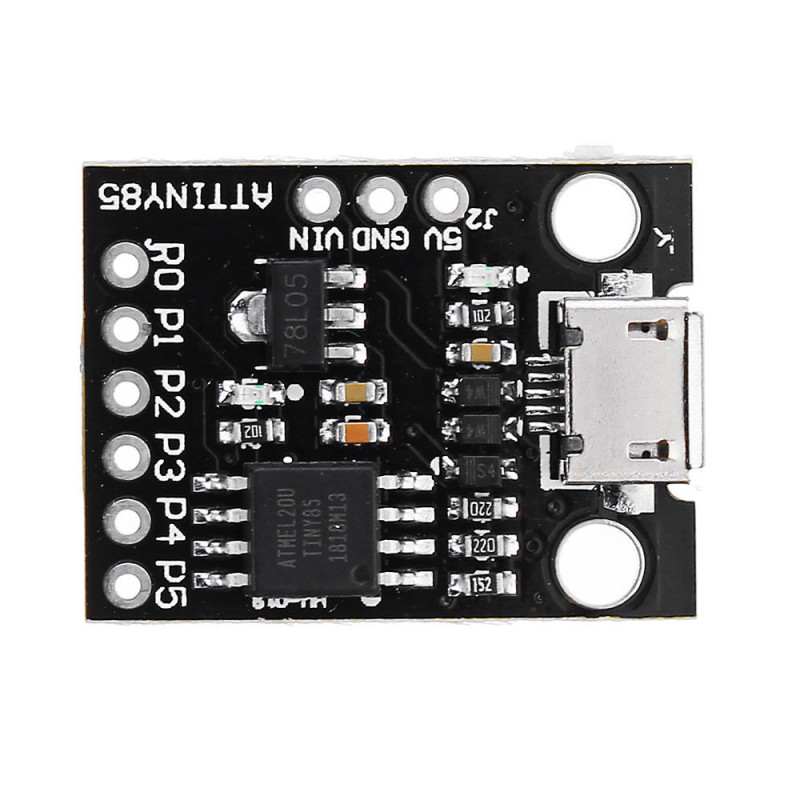

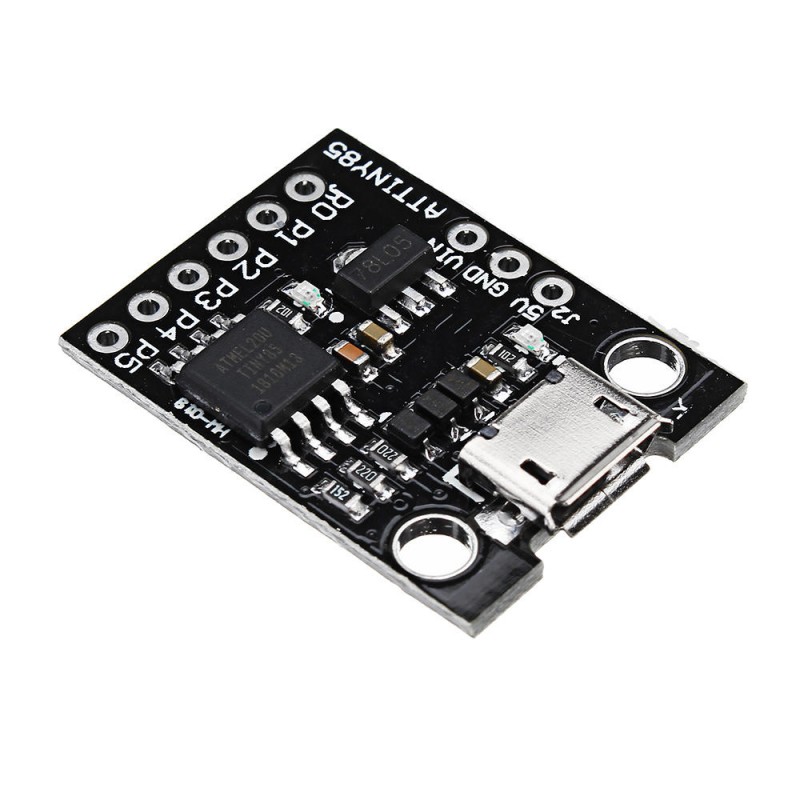

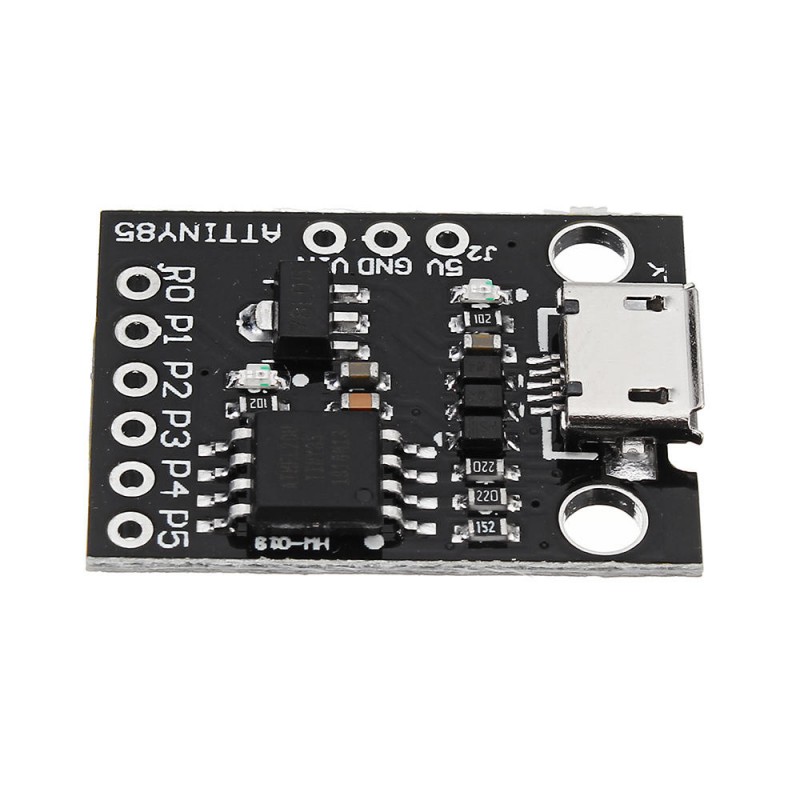

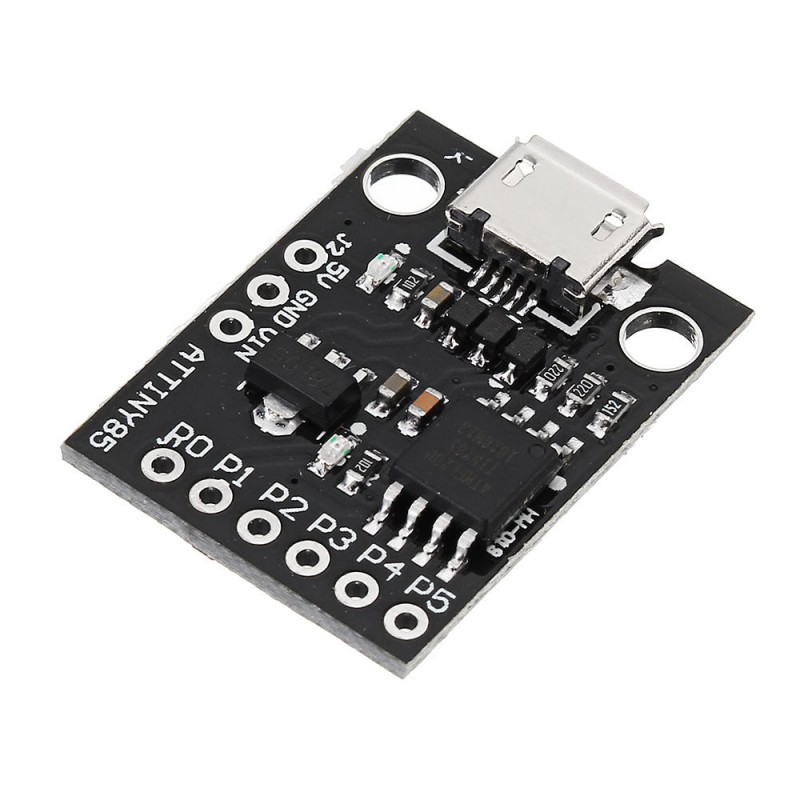

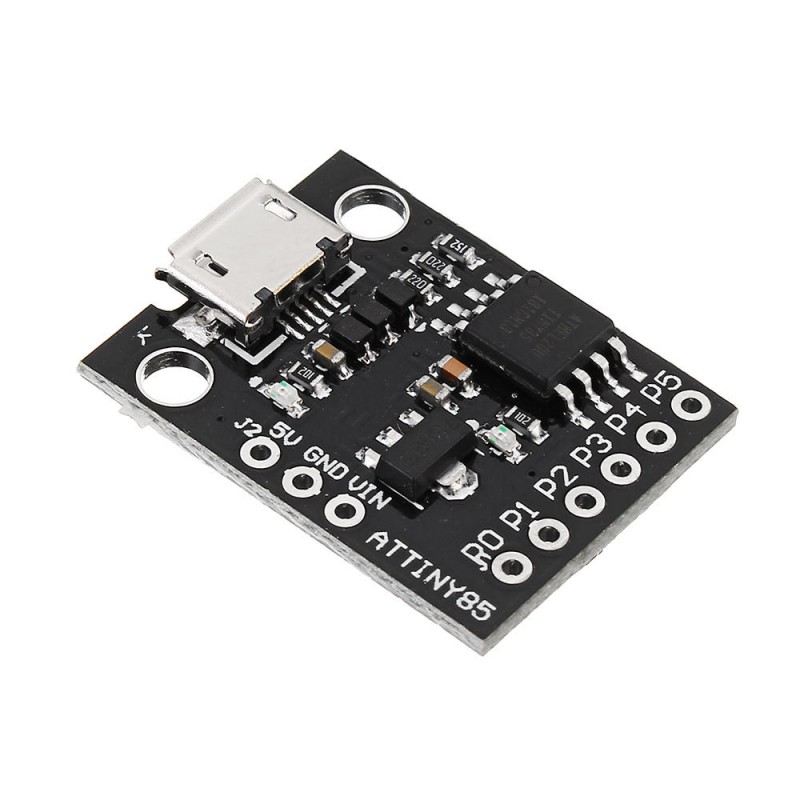

ATTINY85 Mini Usb MCU Development Board

  • $4.50
  • Ex Tax:$4.50
  • Product Code: 207366
  • Availability: In Stock

Feature: Support for the IDE 1.0+ (OSX/Win/Linux) Power via USB or External Source - 5v or 7-35v (12v or less recommended, automatic selection) On-board 500ma 5V Regulator Built-in USB 6 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB) 8k Fl..


Feature:

Support for the IDE 1.0+ (OSX/Win/Linux)
Power via USB or External Source - 5v or 7-35v (12v or less recommended, automatic selection)
On-board 500ma 5V Regulator
Built-in USB
6 I/O Pins (2 are used for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB)
8k Flash Memory (about 6k after bootloader)
I2C and SPI (vis USI)
PWM on 3 pins (more possible with Software PWM)
ADC on 4 pins
Power LED and Test/Status LED


Package included:

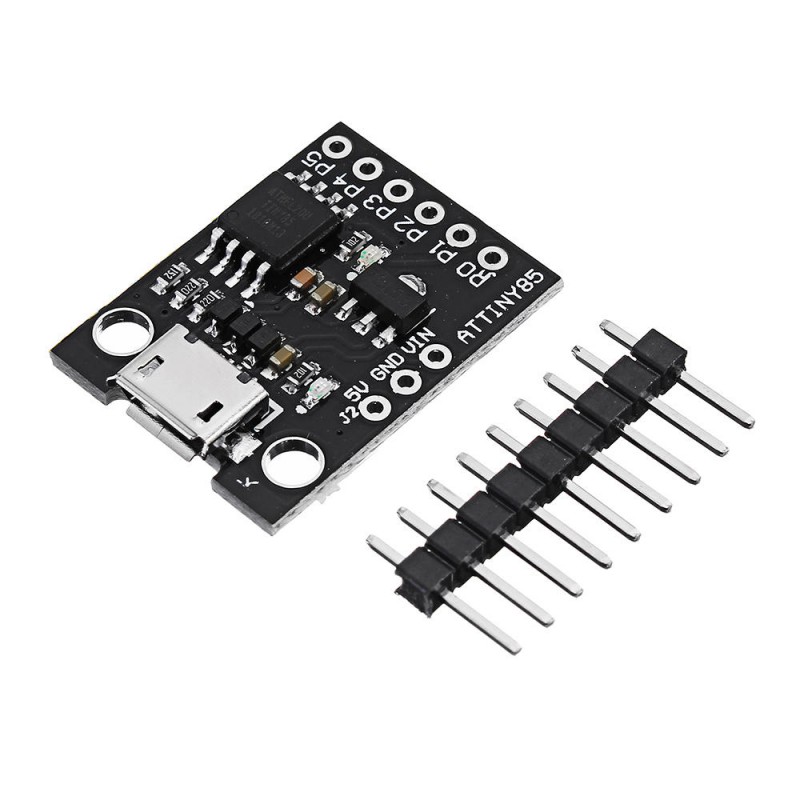

1 x ATTINY85 Mini Usb MCU Development Board For Arduino
