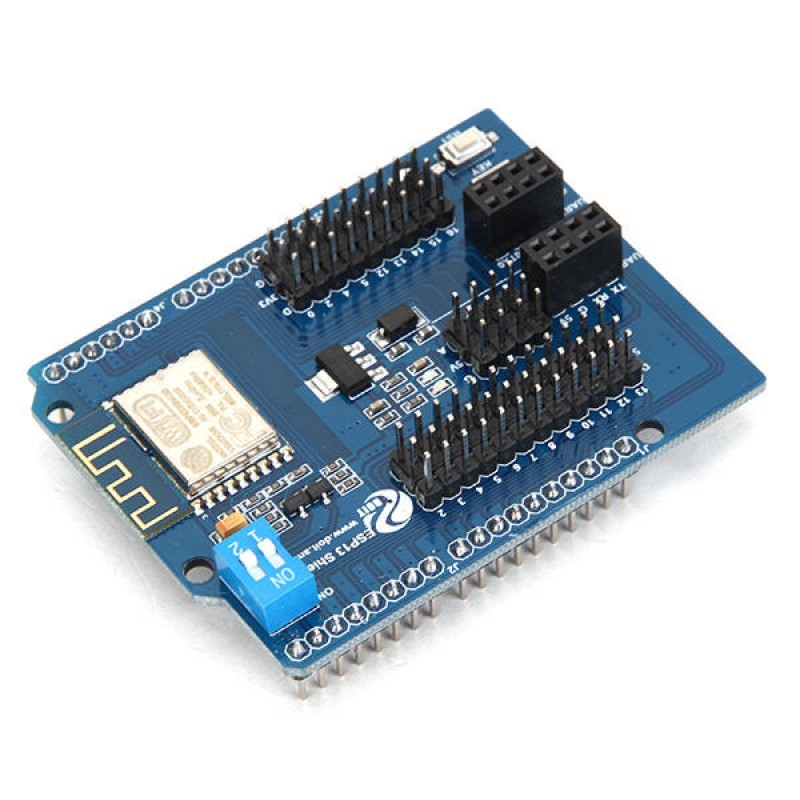

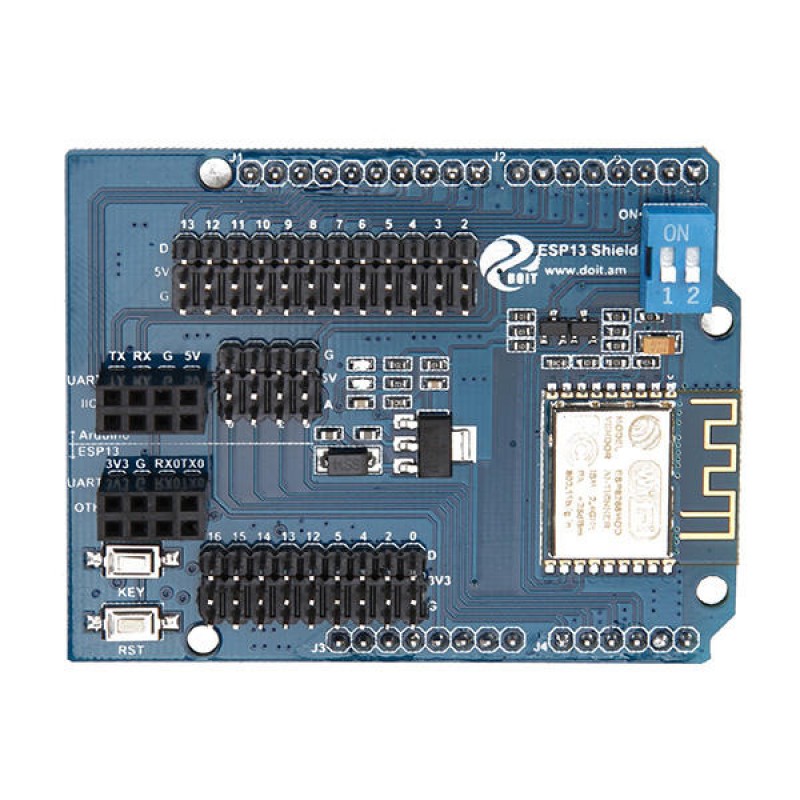

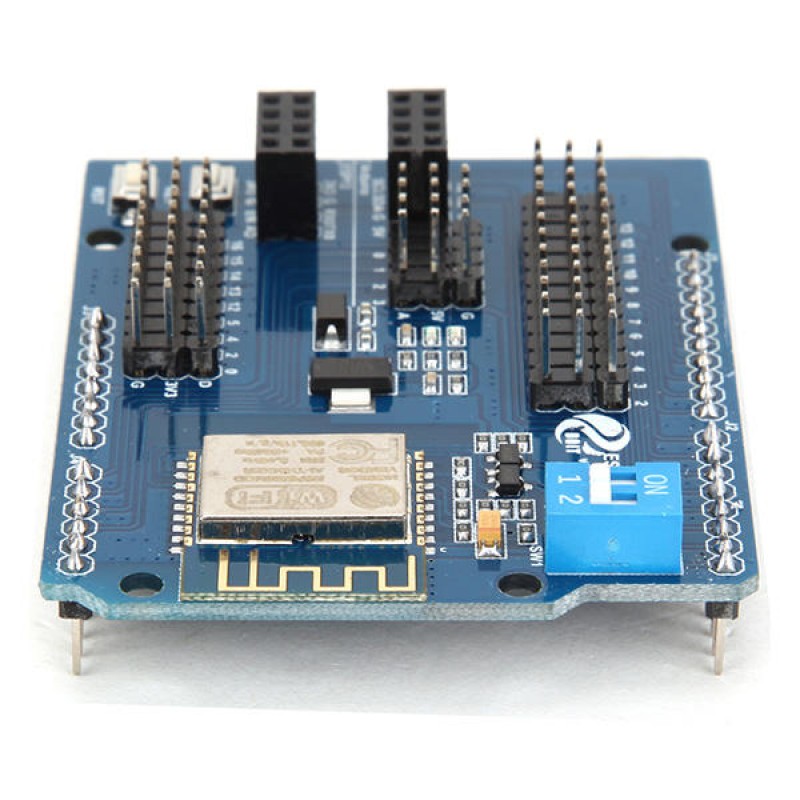

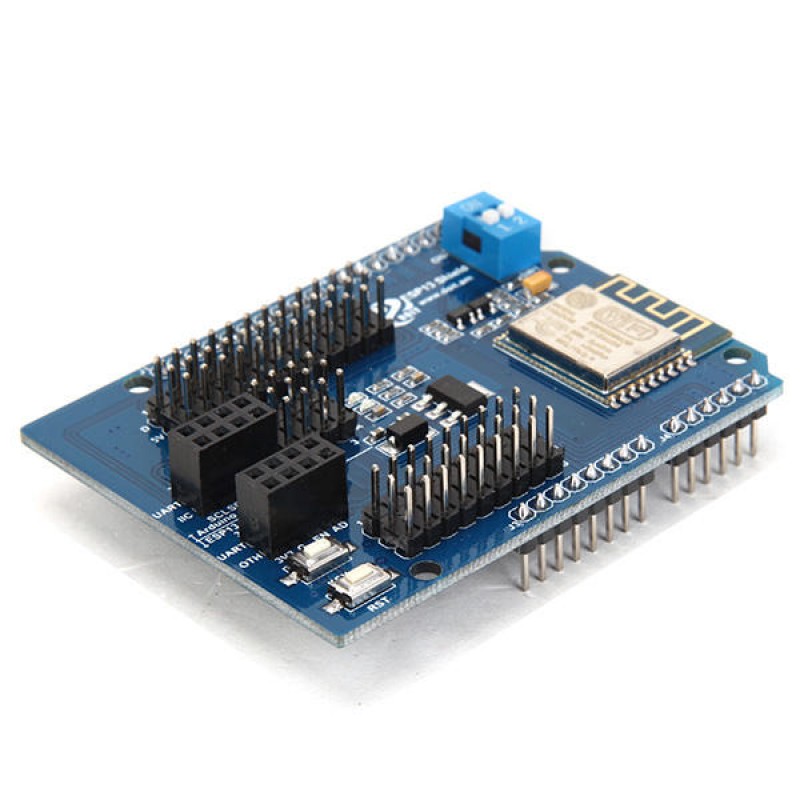

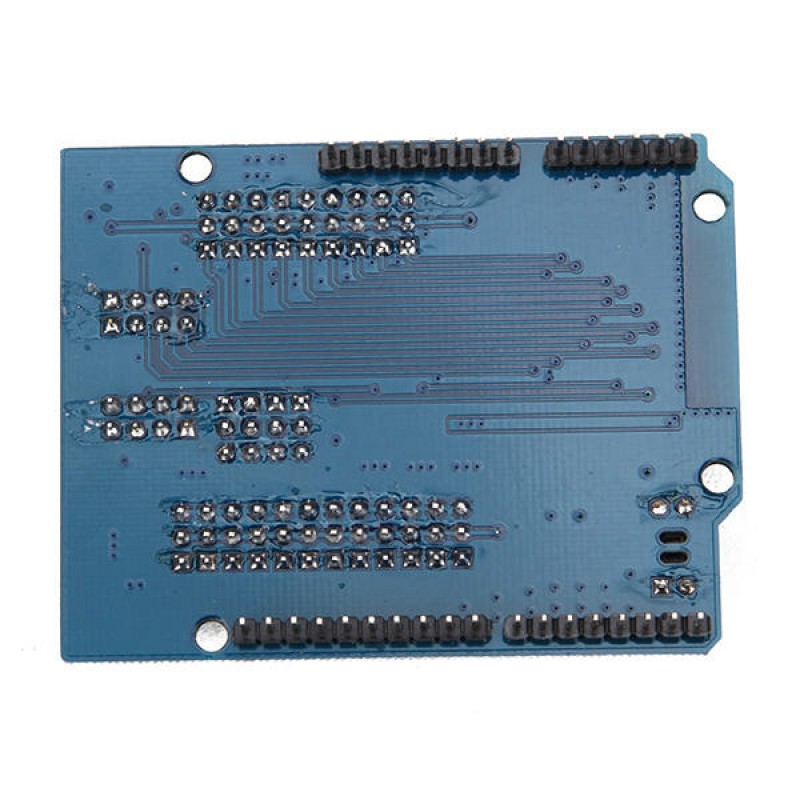

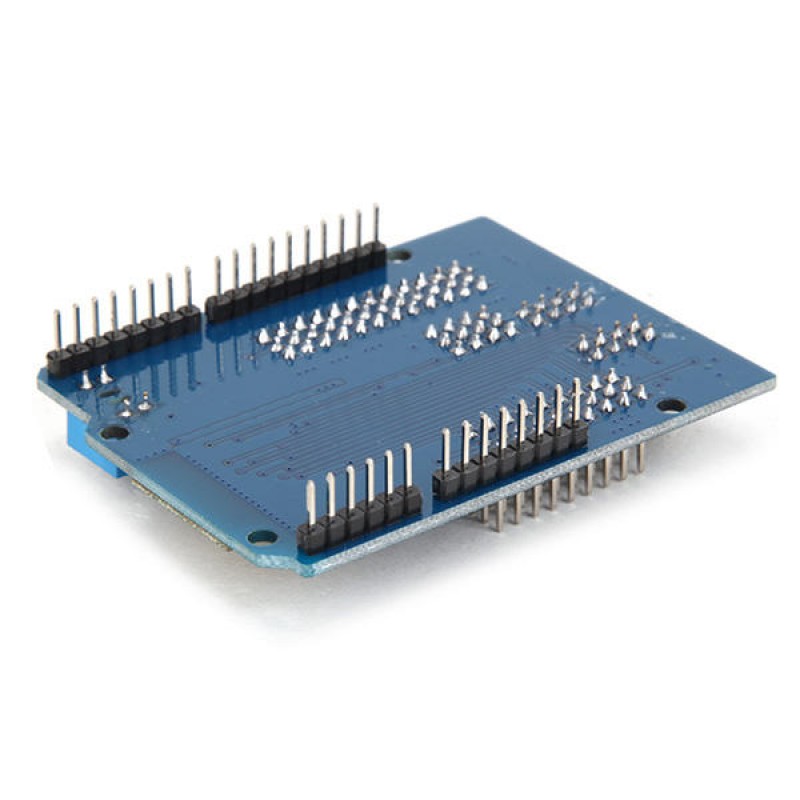

ESP8266 Web Server Port WiFi Expansion Board ESP-13 Compatible With Arduino

ESP8266 Web Server Port WiFi Expansion Board ESP-13 Compatible With Arduino

rating
0 reviews / Write a review
  • $7.99
  • Ex Tax:$7.99
  • Product Code: 295927
  • Availability: In Stock

ESP8266 Web Server Port WiFi Expansion Board ESP-13 Compatible With Arduino Uno Mega 2560Description: 1, WiFi using industrial-grade chips ESP8266, modules for the ESP-13 with metal shield, anti-jamming; 2. Standard pin-compatible Arduino Uno, Mega2560 and other control board, Arduino UNO connection with the use of a voltage converter chip, so 3.3V a..

ESP8266 Web Server Port WiFi Expansion Board ESP-13 Compatible With Arduino Uno Mega 2560Description:
1, WiFi using industrial-grade chips ESP8266, modules for the ESP-13 with metal shield, anti-jamming;
2. Standard pin-compatible Arduino Uno, Mega2560 and other control board, Arduino UNO connection with the use of a voltage converter chip, so 3.3V and 5V are compatible;
3. Serial port DIP switch with dual control, so the expansion board can be used alone as an Arduino Uno expansion boards, it can also be used as ESP8266 expansion board use;
4, Real serial WiFi, Arduino program without any configuration;
5, Based on WiFi Web Server configuration parameters and serial port parameters;
6, Can be used as an independent ESP8266 development board, download the official AT commands firmware, NodeMCU open source firmware;
7, can be used as stand-alone expansion board Arduino Uno use, pin all leads.

More information:

User Manual:
 https://fineshang.gitbooks.io/esp8266-based-serial-wifi-shield-for-arduino-user/content/

Technical Specifications:

DC 3.3V-5V
1, Wireless 802.11 b / g / n standards;
2, Support for STA / AP two modes of operation;
3, Built-in TCP / IP protocol stack, you can configure a socket;
4, Supports standard TCP / UDP Server and Client;
5, The serial port baud rate support: 1200 / 2400 / 4800 / 9600 / 19200 / 38400 / 57600 / 74800 / 115200 bps;
6, Serial data bits: 5 / 6 / 7 / 8 bits;
7, Serial Parity: None;
8, Serial port stop bits: 1/2 bit;
9, The standard Arduino UNO, Mega pitch;
10, Leads out Arduino Pin 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 11 / 12 / 13;
11, Leads out ESP8266 GPIO 0 / 2 / 4 / 5 / 9 / 10 / 12 / 13 / 14 / 15 / 16 / ADC / EN / UART TX / UART RX;
12, RESET reset;
13, KEY multiplex configuration function keys;
14, Two DIP switches enable switching Arduino and ESP8266 serial port expansion;
15, WiFi current: continuous transmission: ≈70mA (200mA MAX), Standby: <200uA;
16, Wireless transmission rate: 110-460800bps;
17, The working temperature: -40 ℃ ~ + 125 ℃

Package included:1 x ESP8266 Web Server Port WiFi Expansion Board ESP-13Configuration Mode:
