UNO R3 USB Development Board With LCD 1602 Keypad Shield Kit
- $12.30
- Ex Tax:$12.30
- Product Code: 066313+083549
- Availability: In Stock

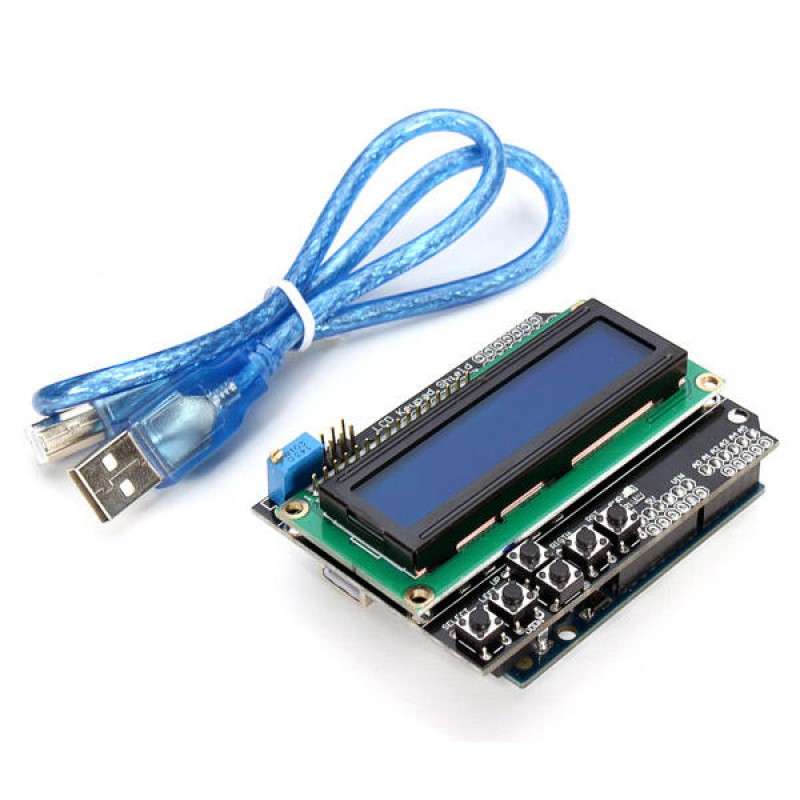

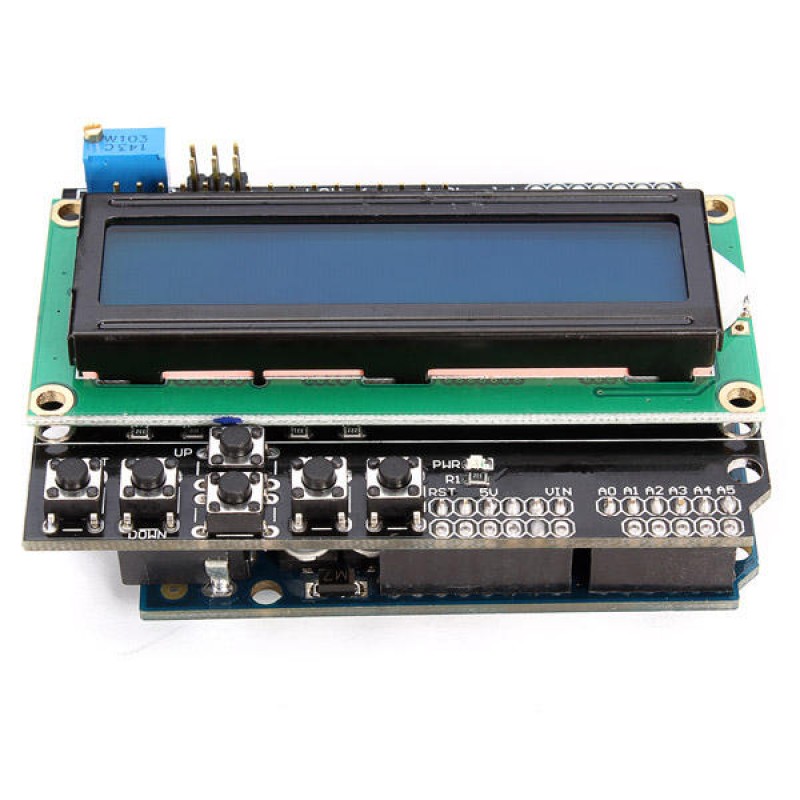

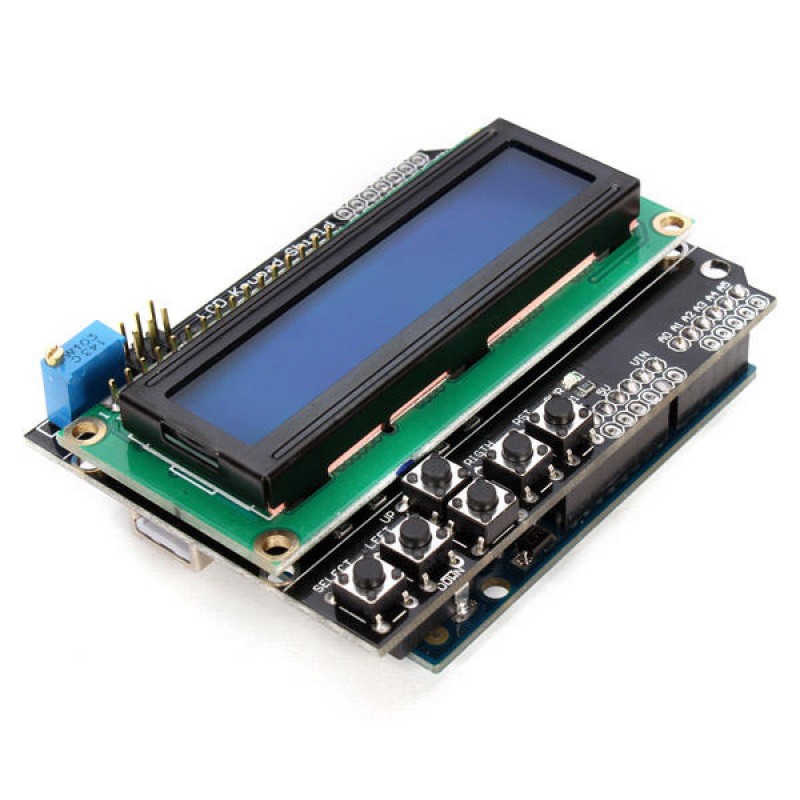

LCD 1602 Keypad Shield: (Single buy, click here)This is a basic 16 character by 2 line black-on-green display.Utilizes the extremely common HD44780 parallel interface chipset.Interface code is freely available.Blue Backlight with white words.Uses 4 Bit Arduino LCD Library.Size:8cm x 5.9cm - 3.15inch x 2.32inch.Arduino-Compatible R3: (Single buy, clic..
Utilizes the extremely common HD44780 parallel interface chipset.
Interface code is freely available.
Blue Backlight with white words.
Uses 4 Bit Arduino LCD Library.
Size:8cm x 5.9cm - 3.15inch x 2.32inch.Arduino-Compatible R3: (Single buy, click here)Description:UNO R3 board is 100% compatible with original Arduino, now it has perfect quality and performance .
Arduino is an open-source physical computing platform based on a simple i/o board and a development environment that implements theProcessing/Wiring language. Arduino can be used to develop stand-alone interactive objects or can be connected to software on your computer (e.g. Flash, Processing, MaxMSP). The open-source IDE can be downloaded for free (currently for Mac OS X, Windows, and Linux).

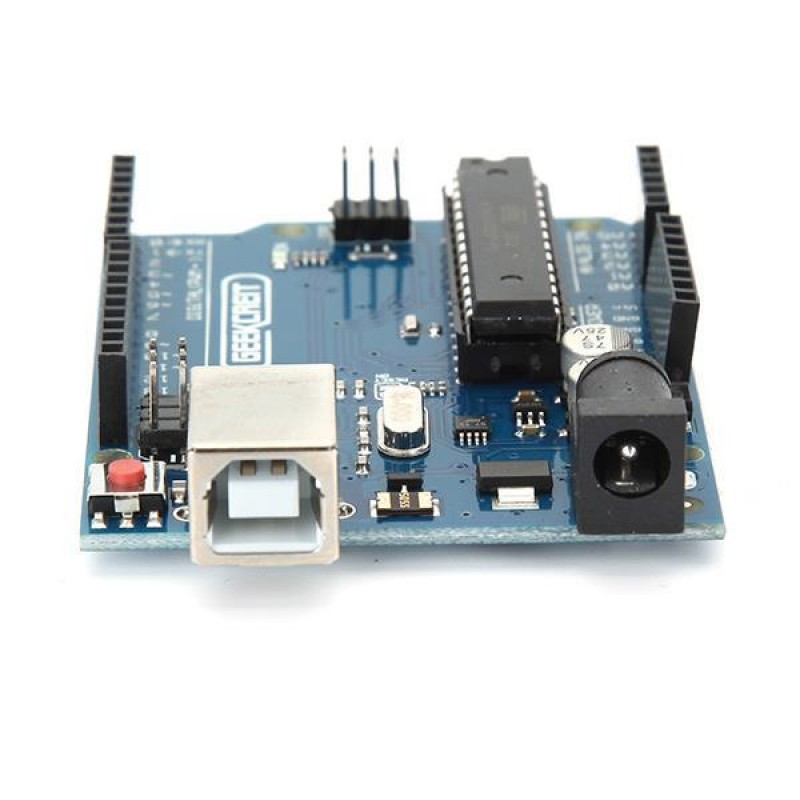

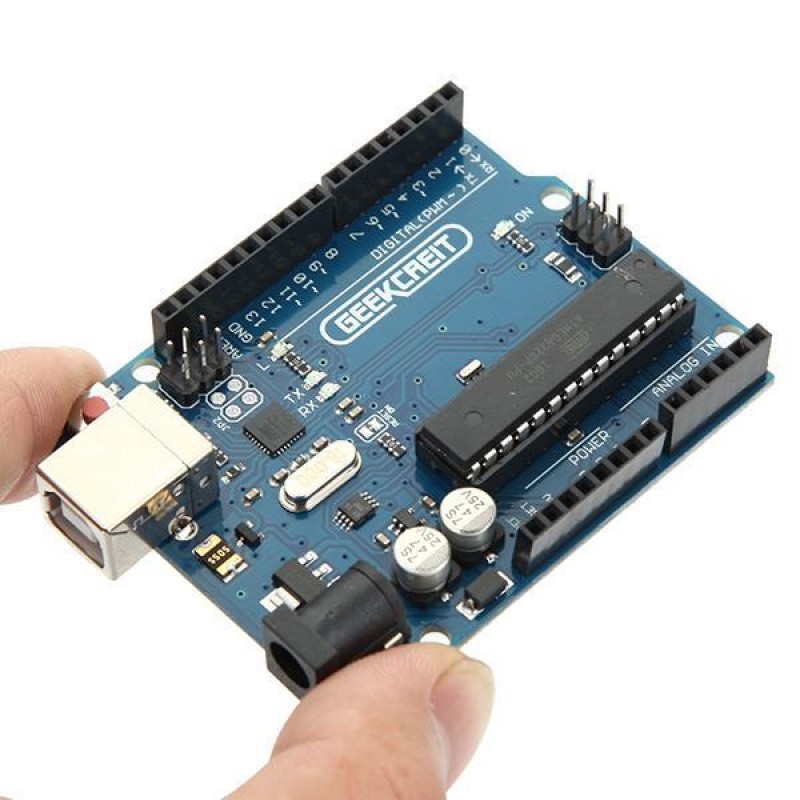

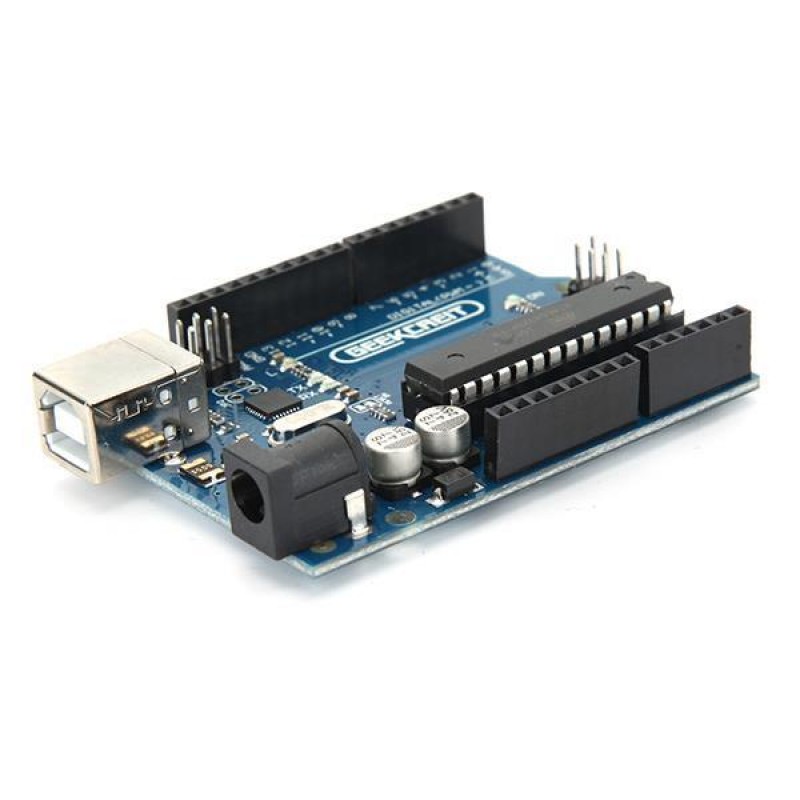

This is the new Tosduino Uno R3. In addition to all the features of the previous board, the Uno R3 now uses an ATmega16U2 instead of the ATmega8U2 chip. This allows for faster transfer rates, no drivers needed for Linux or Mac (inf file for Windows is needed), and the ability to have the Uno show up as a keyboard, mouse, joystick, etc.Note: The TOSduino Uno R3 requires the Arduino 1.0 drivers folder in order to install properly on some computers. We have tested and confirmed that the R3 can be programmed in older versions of the IDE. However, the first time using the R3 on a new computer, you will need to have Arduino 1.0 installed on that machine.
The small chip is ATmega16U2, the 28 pin DIP socket chip is ATmega328-pu.Package included:1 x Arduino-Compatible R3 with USB cable
1 x LCD 1602 Keypad Shield
